Categories: Industrial Rubber Sheet

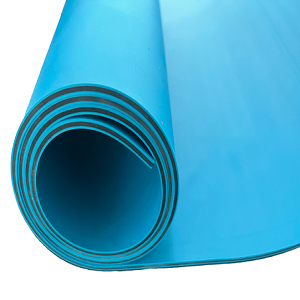

Antistatic Rubber sheet have two layers; the top one is a green, grey or blue static dissipative matt,minute surface and rubber layer laminated to a black conductive rubber bottom layer. The upper dimension is 0.3mm with green or other colors, the down is black. It is designed to be used on workbenches providing protection for sensitive electrical components.
Key Features
Shore Hardness: 65° ± 5°.
Temperature: -20°C up to +70°C (+90 °C intermittent).
With EU quality certification 符合有欧盟认证
Used for industrial and mining enterprises ,transport sector and housing ground.
Prevent chemical flux characteristics, and wear resistant, It’s also easy to clean.
Mainly made with conducting electrostatic materials, static dissipative material and Synthetic rubber, etc.
| Anti-Static RUBBER SHEET | |||||||
|
CODE |
SPECIFICATION |
HARDNESS |
S.G. |
Surface |
TENSILE STRENGTH |
Electric Resistance |
COLOUR |
|
JD-ANS70150
|
Economy Grade
|
70
|
1.50
|
Top Surface |
10 |
106~9 |
Green,Grey,Blue |
|
Bottom Surface |
3 |
103~5 |
Black |
||||
|
Standard Width |
0.915m up to 1.5m |
|
Standard Length |
10m-20m |
|
Standard Thickness |
2mm, – 6mm |
Custom sizes available upon request.
